PUDU ROBOTICS > CC1 > REDDOT WINNER 2023
All your cleaning needs with one machine.
Sweeping, scrubbing, vacuuming and mopping: all in one.
Super suction power means no stain is left behind. It fits corners perfectly and suits various floor types, managing both hard floors and soft carpets.
Auto Charging, Docking Station and Mobile Water Station available.
Real-time notifications and reports for cleaning performance.
RANGE
COVERAGE
RUN TIME

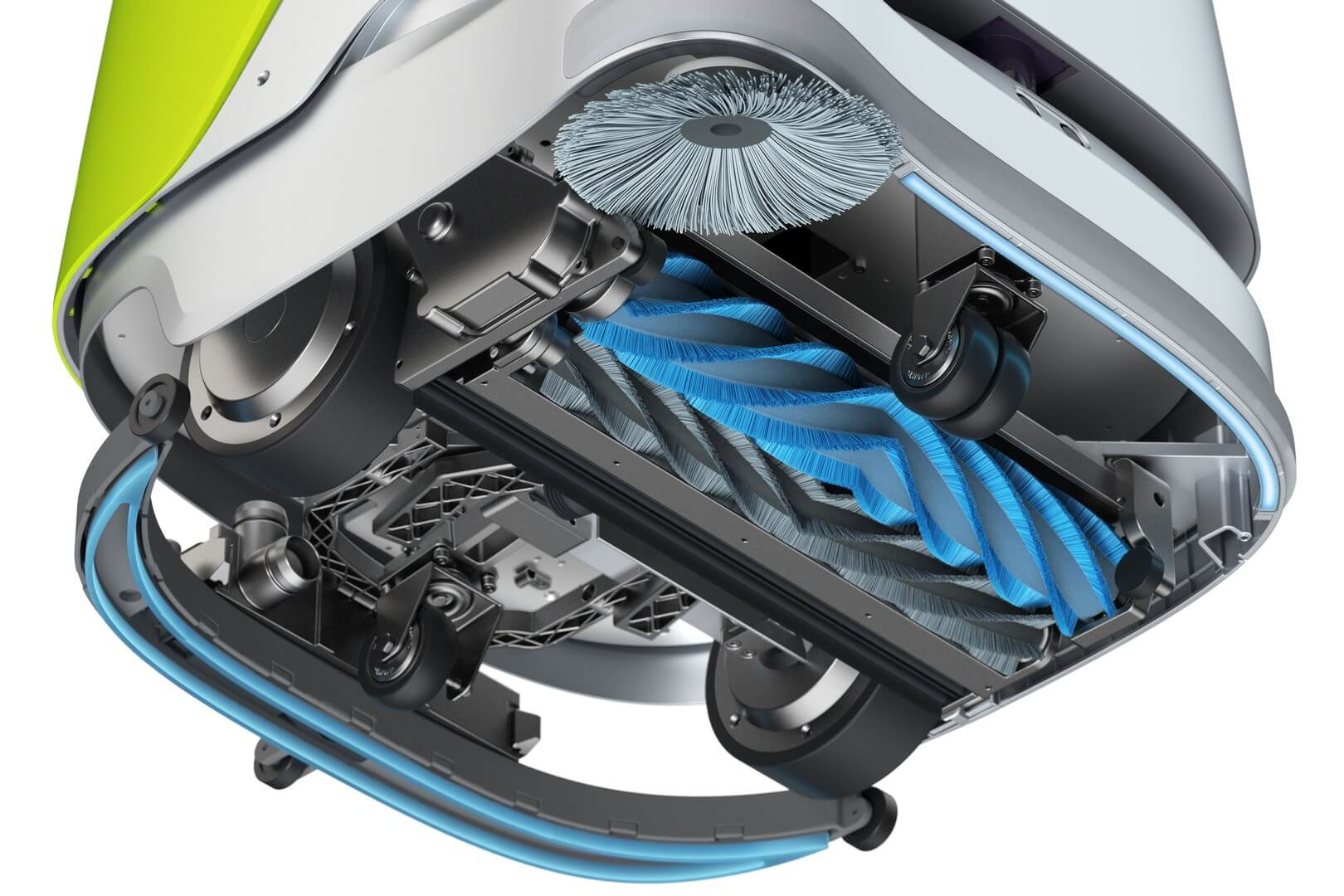

17000 PA Super Suction Power
No stain left behind

Automatic Water Addition & Drainage

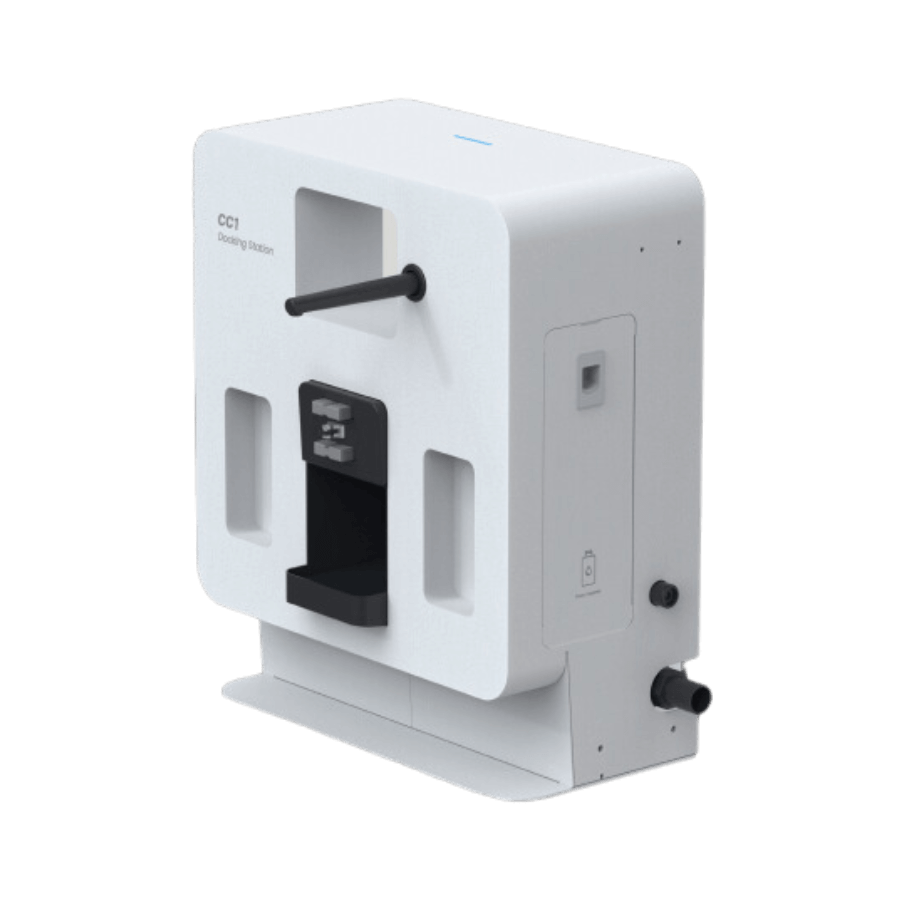

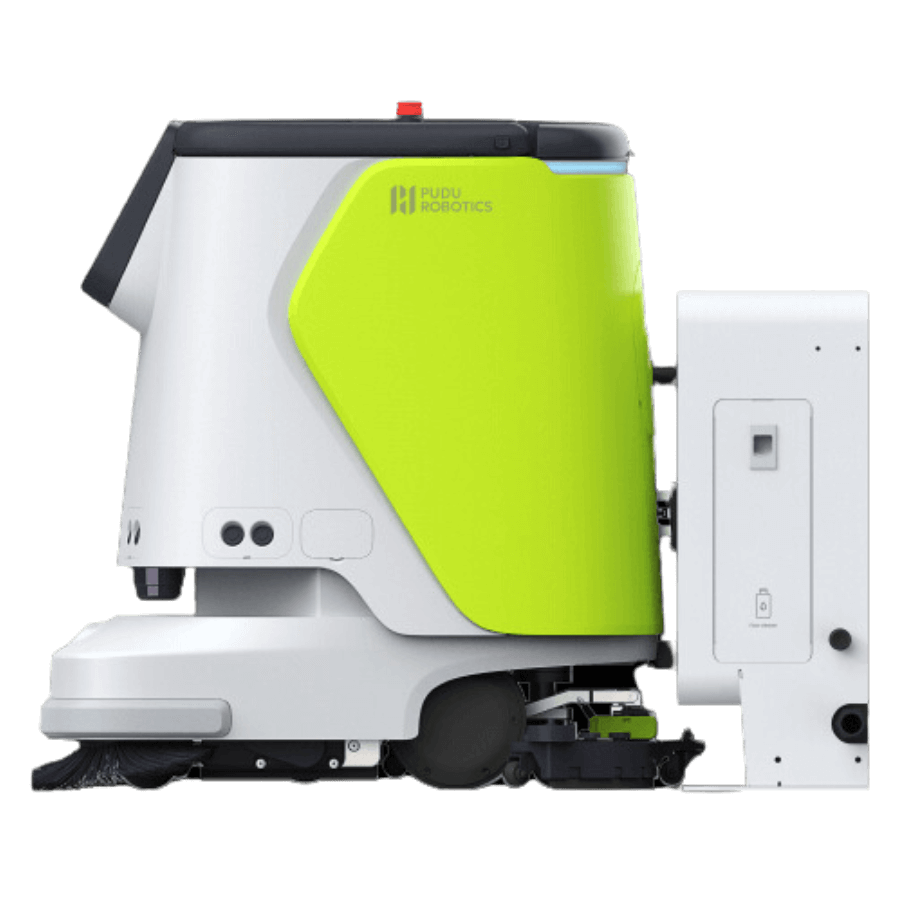

Docking Station + Mobile Water Station. No need for plumbing modifications, supports auto charging, water supply & drainage and detergent addition.

Auto Charging
Charging Station. The robot will automatically return to the charging station when the power is low.

PUDU SLAM Navigation Solution
Powered by the PUDU SLAM positioning system, CC1 supports both visual SLAM and laser SLAM to perform tasks more efficiently in complex scenarios.

Intelligent Elevator Control
Get real-time notifications for cleaning performance, such as cleaning time and area. Summarize the working status of each unit and automatically generate a cleaning report.

Suits Various Floor Types
Suitable for both hard floors and soft carpets

Extendable Steering Handle for Ease of Operation​
Extension handle makes it easier to create cleaning maps and respond to unexpected cleaning situations, while ensuring effortless machine maneuverability

Digital Cleaning
Get real-time notifications for cleaning performance, such as cleaning time and area.

Breakpoint Resume Cleaning
If the power is low but the cleaning task hasn't been completed, CC1 can remember the progress and resume the previously unfinished task after being fully charged.

Visualization of cleaning effects
Monitor the working status of each unit in real time and automatically generate detailed cleaning reports for performance tracking.
To clean soft carpets, CC1 must have the carpet vacuuming assembly attached. The carpet-cleaning assembly needs to be purchased separately. The workstation series need to be purchased separately.
PUDU Mobile Water Station
Designed for use with a fixed docking station, this product eliminates the need for plumbing modifications in the workspace and enables robots to fill and drain water automatically.

PUDU Charging StationÂ


Elevator control main control is an IoT device designed specifically for robots and smart devices, which aims to enable robots to ride the lift autonomously. The module is an independent and safe solution for lift IoT by adopting a lightweight modification approach without controlling, damaging or engaging with the internal systems of the lift.
The Carpet Vacuuming Assembly of the PUDU CC1 is custom-tailored to meet the specific cleaning needs of various carpets. It features a multi-simulated air chamber design that delivers unparalleled cleaning performance, which is both robust and efficient.
Supports automatic self-cleaning, charging, water supply and drainage, and detergent addition.




| MODEL | Pudu CC1 |
| DIMENSIONS | 663 x 568 x 682 mm |
| WEIGHT | 60 kg |
| SWEEPING WIDTH | 500 mm |
| SCRUBBING WIDTH | 400 mm |
| WATER TANK CAPACITY | Clean Water Tank: 15L Waste Water Tank: 17L |
| CHARGING TIME | < 4 h |
| RUN-TIME | Max 9 h |
| CLEANING EFFICIENCY | 700-1000 m²/h |
| CLEANING OPERATING NOISE | <70 dB |
| CRUISE SPEED | Max. 1.2 m/ s |
| MAXIMUM CLIMBING ANGLE | 8° |
| LOCAL INTERACTION | 10.1-inch touch screen |
| POSITIONING METHOD | Visual + Laser Positioning |
| CHARGING METHOD | Auto Recharging & Line Charging |
* Specifications are derived from manufacturer’s test results. Actual performance may vary in different working scenarios.
